Mikke Zavala :: KV cache and context depth on a gfx1151 iGPU

[!TIP] Visit the Interactive Dashboard: https://mikkezavala.github.io/llm-bench/

Throughput measurements for four models people run locally for coding, on an AMD Ryzen AI MAX+ 395 w/ Radeon 8060S (gfx1151, 128 GB unified memory), across five KV cache type pairs and five context depths, recorded under both the ROCm and the Vulkan build of llama.cpp.

What this is. A record of how throughput responds to configuration on one machine: which KV cache type, how deep the context, and which model is loaded. If you have similar hardware, these are the numbers I got and the settings that produced them.

What this is not. A comparison of ROCm against Vulkan. The two builds are different llama.cpp commits made days apart, so any difference between them contains the backend and everything else that changed between those commits. Results are reported per backend and compared within a backend. No number here is offered as "backend X is faster than backend Y", and none should be quoted that way.

Status: ongoing. Runs are still being added and more factors are yet to be swept — use_mmap next, and the other runtime knobs are constant for now. Numbers move as the dataset grows.

This page reports what the log contains and how much of it is comparable. It does not explain why any measured difference occurs — attributing one to an attention kernel, a driver path or a build difference would need evidence this dataset does not contain. Where a measurement has more than one possible explanation, the alternatives are listed as open questions rather than resolved.

Every figure and number here is regenerated from data/results.jsonl on each build, so the write-up and the data cannot silently drift apart.

Snapshot

Hardware	cpu_info: AMD Ryzen AI MAX+ 395 w/ Radeon 8060S (gfx1151), 128 GB unified memory
Builds	build_commit a66d505 / build_number 1 for all ROCm records; d6d899580 / 9747 for all Vulkan records
Reported GPU	Radeon 8060S Graphics (ROCm), Radeon 8060S Graphics (RADV STRIX_HALO) (Vulkan)
Tests	430 llama-bench records → 170 configurations, 1 record per (configuration, metric)
test_time span	2026-07-31T21:39:58Z to 2026-08-01T04:40:38Z
Metrics	prefill pp512 / pp1024 / pp2048 (depends on depth — see below) and decode tg128, tokens/second
Factors	4 models × 2 backends × 5 depths × 5 KV pairs — 30 of 200 cells empty (d8192 is agentworld only so far)
Held constant	11 runtime knobs: flash_attn=1, use_mmap=True, no_kv_offload=False, n_batch=1024, n_ubatch=512, n_threads=8, n_gpu_layers=-1, n_cpu_moe=0, split_mode=layer, poll=50, embeddings=False
Repetitions	1 per test (samples_ts has length 1, so stddev_ts is 0)

Two measurement protocols by depth. Prefill length is not held constant across the log:

depths	prefill tests	decode	shape
1024, 2048, 8192	pp512 and pp1024	tg128	triplet
16384, 32768	pp2048	tg128	pair

That matters: a prefill ratio that crosses the two groups is not the same test (different prompt lengths). tg128 is the decode metric shared by every depth. Paired contrasts only join configurations that actually share a metric, so the pipeline does not invent a pp2048 at d1024 — but any write-up that pools “prefill” across depths without splitting on protocol would.

Models under test, with every field as reported by llama.cpp in the log:

label	source	model_type	quant	params	size
qwen	hf://lmstudio-community/Qwen3.6-35B-A3B-GGUF@68a34855558a	qwen35moe 35B.A3B Q4_K - Medium	Q4_K_M	34.66 B	19.70 GiB
agentworld	hf://unsloth/Qwen-AgentWorld-35B-A3B-GGUF@3a305abf5cfd	qwen35moe 35B.A3B Q4_K - Medium	UD-Q4_K_XL	34.66 B	20.78 GiB
glm	hf://unsloth/GLM-4.7-Flash-GGUF@0d32489ecb9d	deepseek2 30B.A3B Q4_K - Medium	Q4_K_M	29.94 B	17.05 GiB
glm-xl	hf://unsloth/GLM-4.7-Flash-GGUF@0d32489ecb9d	deepseek2 30B.A3B Q4_K - Medium	UD-Q4_K_XL	29.94 B	16.31 GiB

Throughout, models are grouped by the architecture token of model_type — qwen35moe (qwen, agentworld) and deepseek2 (glm, glm-xl) — because the measurements separate along that line. KV pairs are described as baseline (f16/f16), asymmetric (f16 keys with a quantised value cache: f16/q8_0, f16/q4_0) or symmetric (both quantised: q8_0/q8_0, q4_0/q4_0), following the log's own bench_ctk and bench_ctv fields. Those are labels for the shape of the K/V pair, nothing more.

What the current snapshot measures

Every figure below is a paired contrast: one factor varies, all other factors are held at fixed values, and both sides of each pair are measured records. Ratios are stated as changed / reference, so 0.50x is half the throughput of the reference and 2.00x is double.

The published notebook has the same figures interactively — hover for exact values, click the legend to isolate a series. The PNGs below are static because GitHub renders no JavaScript.

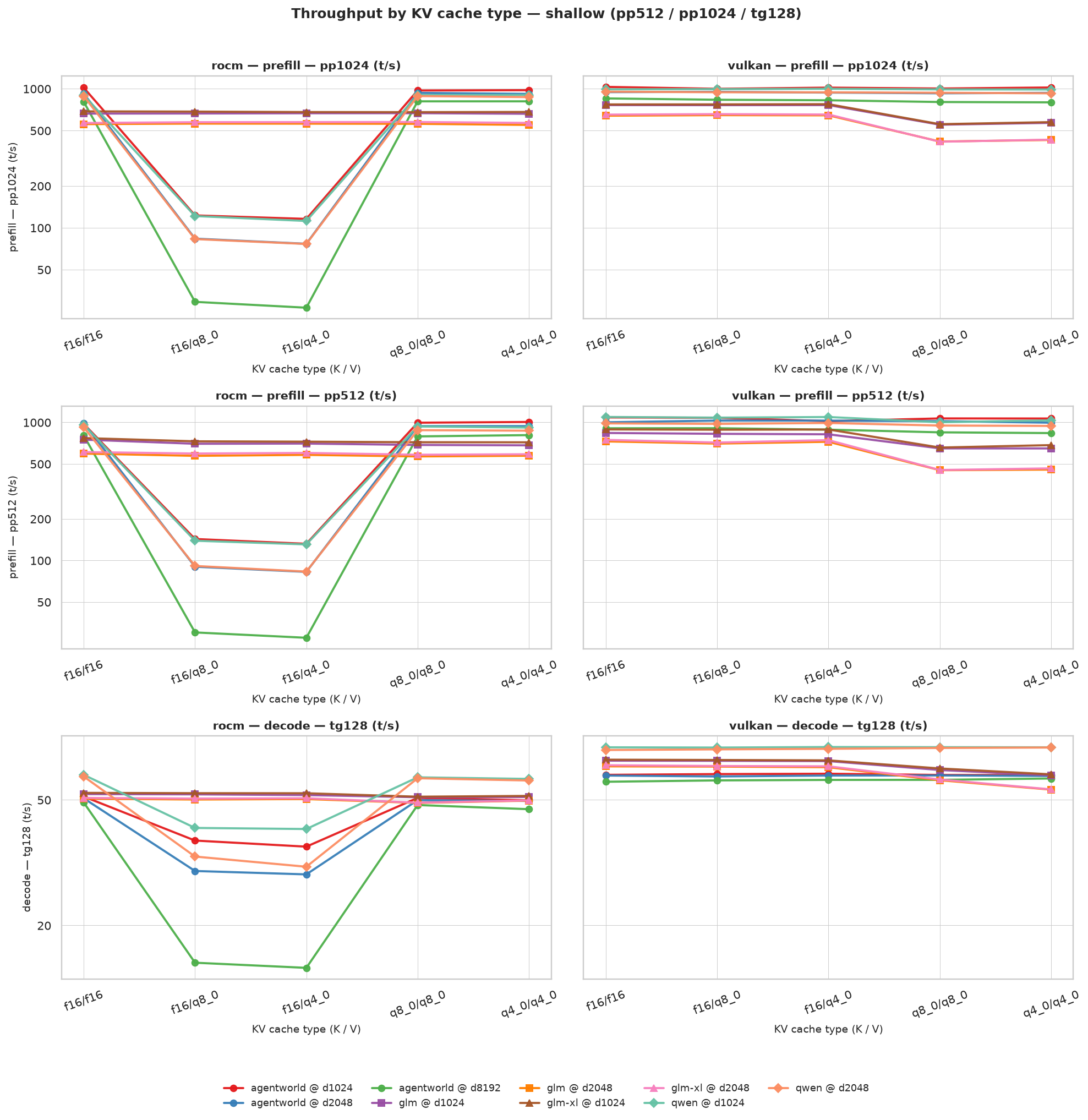

1. KV cache type, within each backend

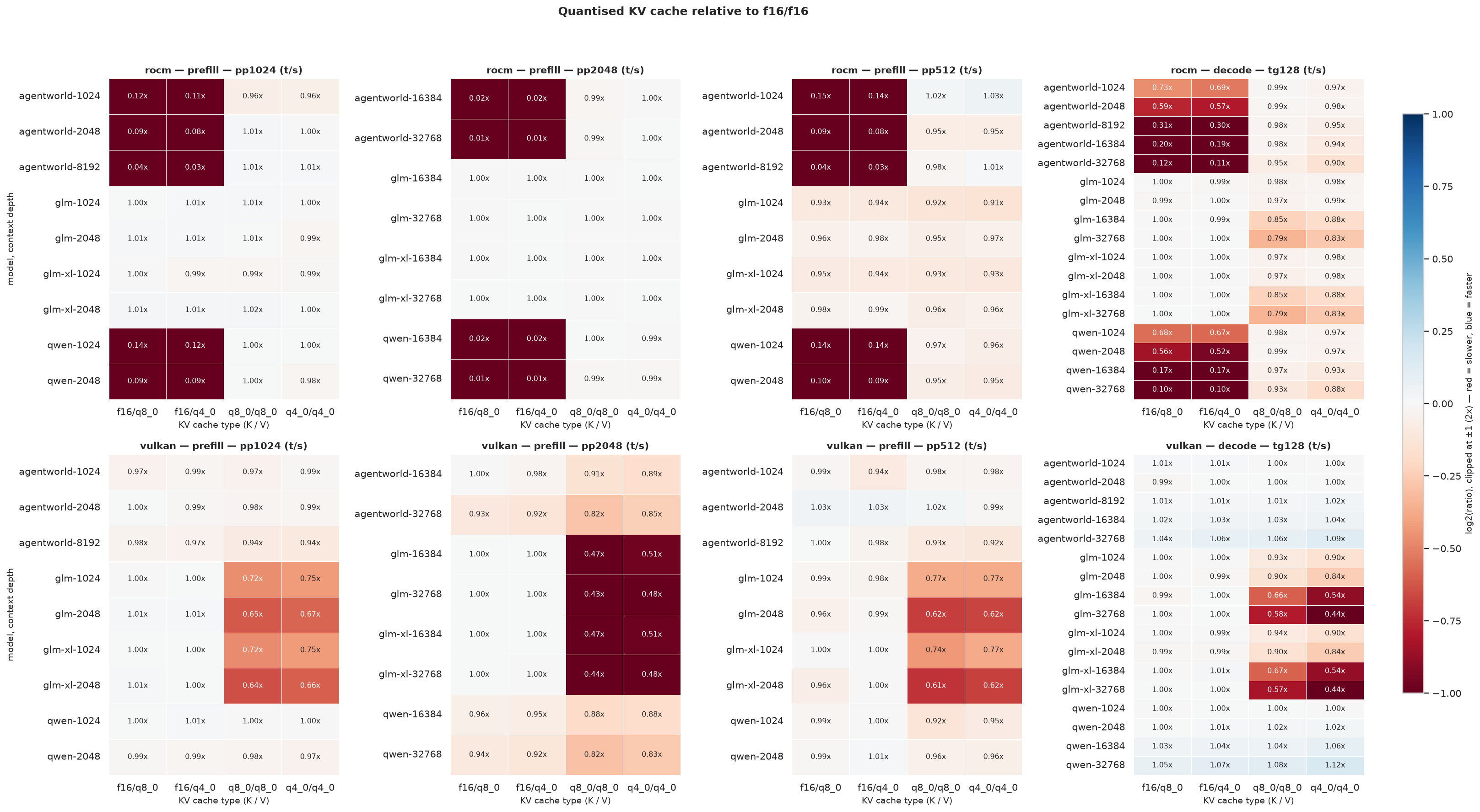

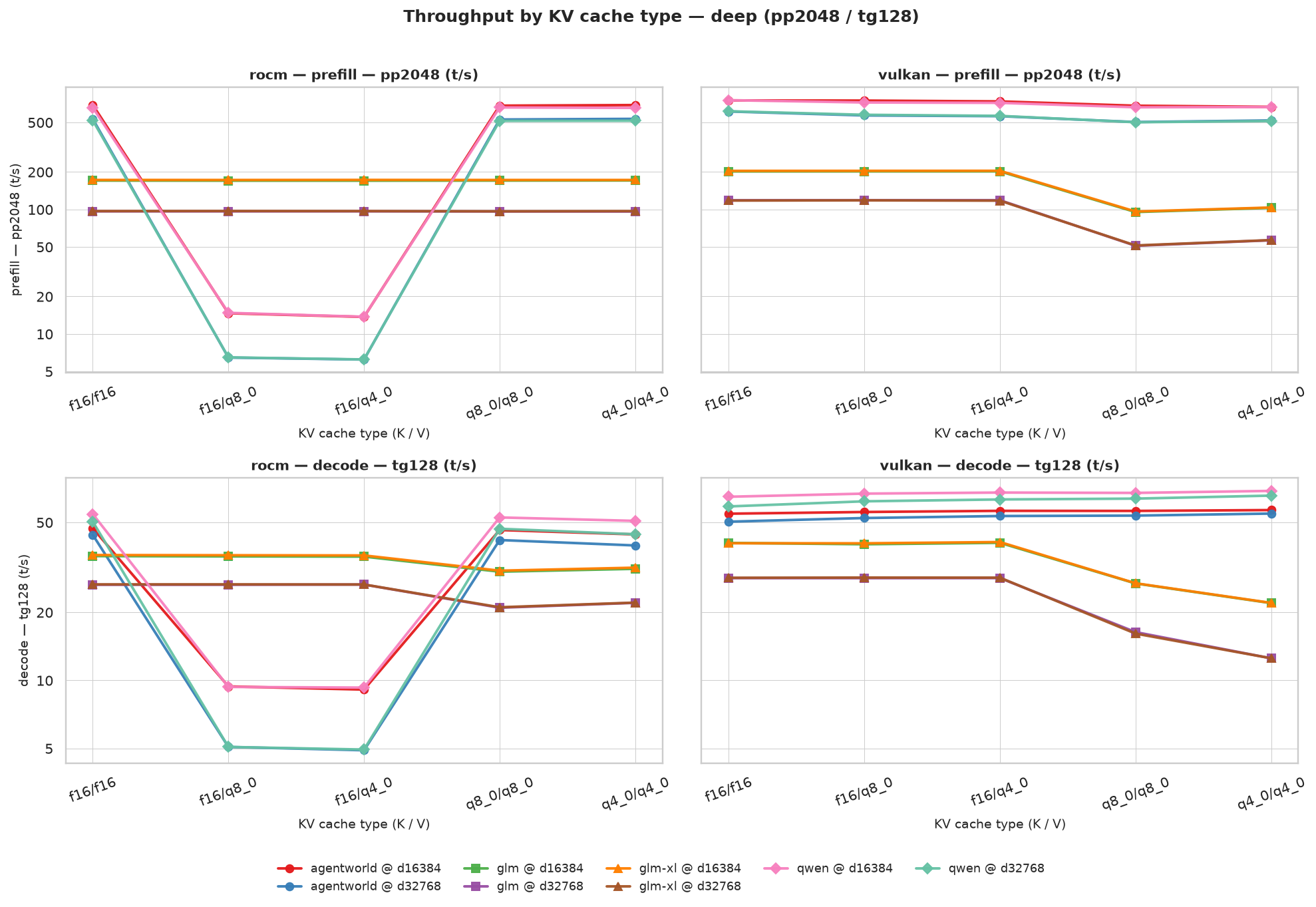

Relative to f16/f16 at the same model, depth and backend. Ranges below are the deep protocol only (d16384 / d32768, pp2048 + tg128 — 8 pairs per row). The shallow triplet depths are in the notebook and figures; pooling them into this table would mix different prefill lengths.

backend	arch	KV pair shape	pp2048	tg128
ROCm	qwen35moe	asymmetric	0.012x – 0.022x	0.098x – 0.200x
ROCm	qwen35moe	symmetric	0.988x – 1.002x	0.880x – 0.983x
ROCm	deepseek2	asymmetric	0.998x – 1.002x	0.995x – 1.002x
ROCm	deepseek2	symmetric	0.996x – 1.002x	0.791x – 0.879x
Vulkan	qwen35moe	asymmetric	0.917x – 0.997x	1.017x – 1.074x
Vulkan	qwen35moe	symmetric	0.816x – 0.907x	1.029x – 1.117x
Vulkan	deepseek2	asymmetric	0.998x – 1.004x	0.986x – 1.013x
Vulkan	deepseek2	symmetric	0.430x – 0.510x	0.440x – 0.665x

The two bold rows are the largest measured effects in the deep protocol. In absolute terms, the ROCm qwen35moe asymmetric cells record pp2048 of 6.2 to 14.8 t/s against 518 to 690 t/s for the same configurations at f16/f16. The same models and KV pairs under the Vulkan build measure within 9 % of their own f16/f16 reading.

Not established by these measurements: whether the ROCm asymmetric result reflects a different code path, a fallback, something specific to that commit, an interaction with flash_attn=1, or something else. flash_attn is 1 in every record, so this data contains no contrast that could separate those possibilities.

2. The same configuration under each build

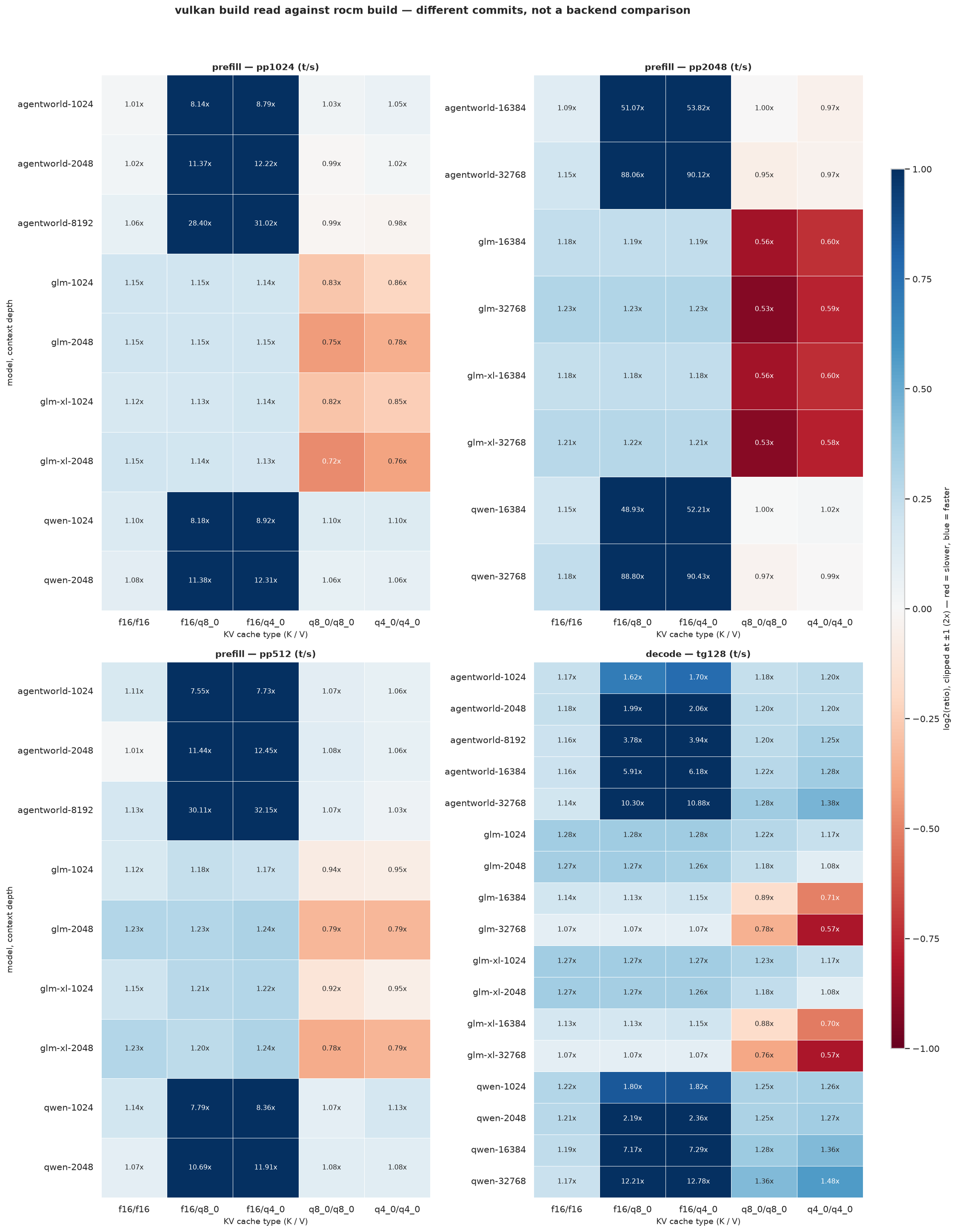

This is not a backend comparison. The two builds are different commits made days apart, so each cell contains the backend and every other change between those commits, with no way to separate them. It is here because which build handled which KV configuration is a practical fact if you are setting this hardware up — not as a ranking.

With KV at f16/f16 the two builds read within roughly 1.01x – 1.28x of each other across the metrics present at each depth. Away from f16/f16 the ratio is dominated by whichever build recorded the large KV effect in section 1. No single summary ratio is quoted across the table, because it would average those regions together and mean nothing.

3. Context depth

Five depths are in the log. Prefill length changes with the protocol above, so depth ratios on pp* are only comparable inside a protocol. tg128 is shared by every depth and is the safe cross-depth decode reading.

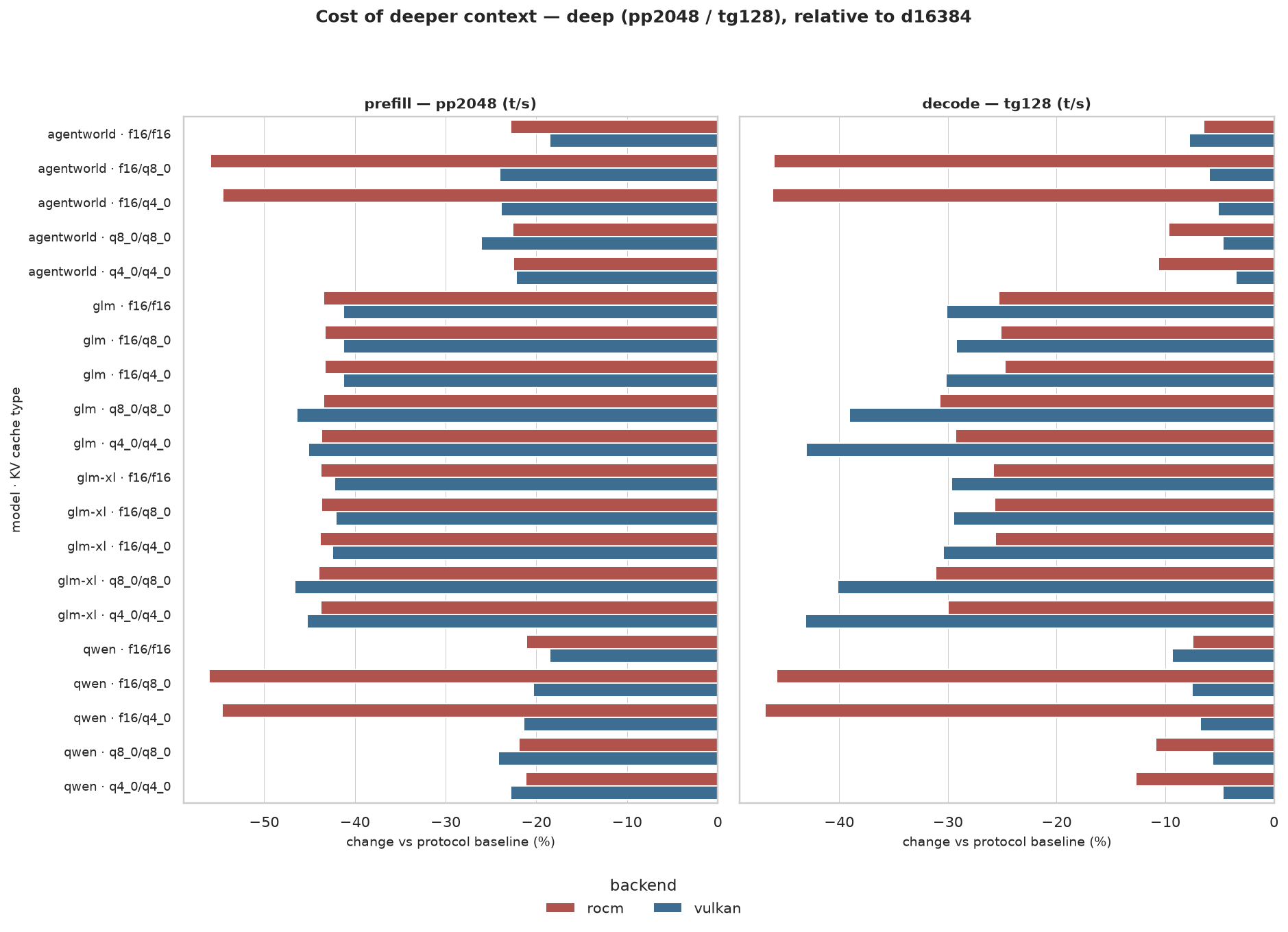

Deep protocol only — throughput at 32768 relative to 16384 (20 configurations per backend):

backend	pp2048 median (range)	tg128 median (range)
ROCm	0.564x (0.439x – 0.789x)	0.743x (0.532x – 0.935x)
Vulkan	0.663x (0.534x – 0.815x)	0.807x (0.569x – 0.965x)

Those ranges mix architectures and KV types. Restricted to f16/f16, the two architectures separate cleanly: qwen35moe measures −18.5 % to −22.8 % on pp2048 and −6.5 % to −9.4 % on tg128, while deepseek2 measures −41.3 % to −43.8 % and −25.3 % to −30.1 % on the same two metrics. In both architectures pp2048 falls by more than tg128.

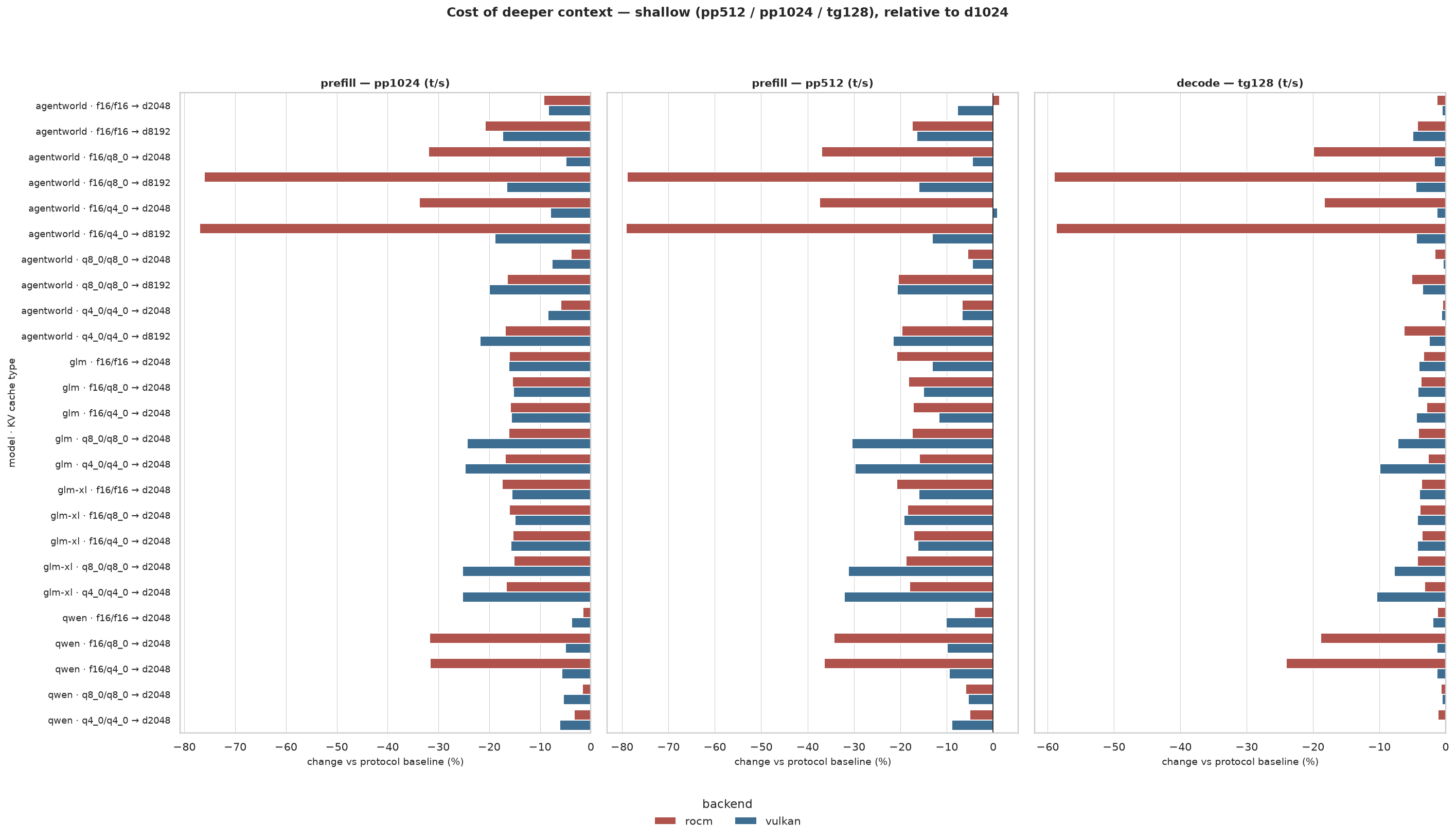

The shallow protocol (d1024 / d2048 / d8192, with pp512/pp1024) is in the figures; d8192 is agentworld only so far, so any mean over that depth mixes a different model set.

4. Two quantisations of the same model

glm (Q4_K_M) and glm-xl (UD-Q4_K_XL) report the same model_type and the same 29.94 B parameter count, and differ in quantisation and file size (17.05 vs 16.31 GiB). They are the only pair in the log where a contrast varies quantisation with model, backend, depth and KV type all held fixed.

Across 100 paired configurations (every depth and every metric both files share), glm-xl / glm medians are 1.030x (pp512), 1.018x (pp1024), 1.008x (pp2048) and 1.006x (tg128), with the full set spanning roughly 0.985x – 1.083x.

Not established by these measurements: whether that spread or its direction is distinguishable from run-to-run variance, which is unmeasured at one repetition per test, or from a run-order or thermal offset. Nothing here speaks to output quality, which is the other axis on which these two files differ.

agentworld is also a UD build, but it is a different fine-tune from qwen, so a contrast between them varies the model and the quantisation together.

5. Swept runtime knobs

Nothing yet. All 11 sweepable knobs are constant in this snapshot, so it says nothing about them — use_mmap in particular, which is the next one intended.

The pipeline is set up for it rather than needing changes when the runs land: a knob that varies becomes a factor, joins the configuration key, and is held fixed by every other contrast, and the notebook grows a section reporting it. Because use_mmap defaults to on, the contrast is measured against on, so it reads as the cost of turning it off.

How the data is treated

data/results.jsonl is the llama-bench --output jsonl log. It is append-only and nothing downstream writes back to it. Field names from the log are used verbatim, so every figure and table traces back to a field that exists in the source records.

One transformation is applied, because the log is published: model_filename has its filesystem location removed, since llama-bench records the absolute path it loaded and on a personal machine that contains a home directory. A Hugging Face cache path becomes hf://org/repo@revision/file.gguf, keeping which repository and revision was loaded; anything else keeps its filename as local://file.gguf. Every other byte is left as llama-bench wrote it — no field is reordered and no number reformatted. It is applied by

python llmbench.py --scrub-paths     # idempotent; run after appending new runs

and a test fails if any path in the log still carries a location, so a fresh append cannot be published with one by accident.

Factors are derived from the log, not fixed in the code. The four core bench_* fields are always factors; any other bench_* field or runtime knob that varies is added to the configuration key automatically, and a field that merely restates an existing factor is dropped so it is not counted twice. Recording an use_mmap sweep therefore makes it a factor that every other contrast holds fixed, rather than a dimension the pivot quietly averages over — which would report a throughput belonging to no configuration that was actually run.

Comparisons are paired within a configuration rather than averaged across the table, so a number cannot change meaning as new cells fill in.

Medians are reported rather than means: the measured ratios span roughly 0.01x to 90x, and a mean over that range is dominated by its largest members.

Percentages are reported to at most one decimal place, which is the limit of what one repetition per test supports.

What the audit reports

llmbench.audit_runs runs before the analysis and states what the data can support. It separates blockers, which would invalidate a comparison, from caveats, which constrain interpretation. On the current snapshot: 5 ok, 4 caveats, no blockers.

check	result
machine	ok — cpu_info identical across all 430 records
factors	ok — 4 factors; 11 other runtime knobs constant
uniqueness	ok — exactly one record per (configuration, metric)
test shapes	ok — pp512, pp1024, pp2048, tg128
metric completeness	ok — within each depth, every config has that depth's metrics
measurement protocols	caveat — prefill length differs by depth (triplet vs pair)
design balance	caveat — 30 of 200 cells empty (d8192 is agentworld only)
replication	caveat — 1 repetition per test; run-to-run variance unmeasured
build provenance	caveat — the two backends are different commits, so the two are not a controlled comparison

gpu_info is treated as provenance rather than as a machine change: the two builds report the same physical device under different names.

Limitations

• One repetition per test. stddev_ts is 0 by construction. Differences of a few percent — the f16/f16 reading between builds, the ±1.5 % quantisation-variant spread — are not separable from noise with this data.
• The two builds are not a controlled comparison. ROCm records carry build_commit a66d505, Vulkan records d6d899580, from commits made days apart. Nothing varies one independently of the other.
• flash_attn is 1 everywhere. Nothing here shows how the measurements change without it.
• use_mmap and the other runtime knobs are constant. They are not yet swept, so this snapshot says nothing about them.
• Throughput only. No perplexity or task accuracy. Nothing here indicates whether a KV cache quantisation that costs no throughput costs output quality.
• Two prefill protocols. Shallow depths use pp512/pp1024; deep depths use pp2048. Prefill ratios across that split are not the same test.
• d8192 is incomplete. Only agentworld is present at that depth so far.
• 5 of 9 K/V type pairs. f16/f16, f16/q8_0, f16/q4_0, q8_0/q8_0, q4_0/q4_0.
• One machine, sequential runs. Run order is not randomised and thermal state is not recorded, so drift over the test_time span is not controlled for.
• Two architectures, two models each. Every statement grouped by qwen35moe or deepseek2 rests on two models, one of which is a UD variant of the other in the deepseek2 case.

Open questions

These are unresolved by the current data, listed with the contrast that would address each.

1. Does the ROCm qwen35moe asymmetric-KV result persist with flash_attn=0? The factor is constant at 1 in every record, so this log cannot say.
2. What does use_mmap do here, on a machine with unified memory and models in the 16–21 GiB range?
3. Is the glm-xl / glm difference reproducible across repetitions?
4. With five depths now in the log, what does the tg128 curve look like once d8192 is filled for every model — and should prefill be plotted only within each protocol?
5. Does the deepseek2 / qwen35moe split hold with more models per architecture, or is it a property of these four files?
6. Do the KV cache quantisations that cost little throughput cost output quality? This requires a metric this study does not collect.

Repository layout

data/results.jsonl   raw llama-bench output — append-only, never edited
analysis.py          the study, as a marimo notebook
llmbench.py          loading, the integrity audit, paired contrasts, figures
build_site.py        builds the published site into site/
test_llmbench.py     tests for the loading, contrast and audit logic
figures/             generated — do not edit by hand

Nothing here is packaged for distribution: the helpers are one module imported by the notebook, so pyproject.toml declares dependencies and nothing else.

Running it

uv sync --extra dev --extra site

marimo edit analysis.py   # explore interactively
python analysis.py        # execute headlessly, as CI does
python llmbench.py        # refresh figures/ and print every number quoted above
pytest                    # tests for the loading, contrast and audit logic
ruff check .

After appending runs to data/results.jsonl, re-run python llmbench.py: it reprints the audit and every summary table this page quotes, which makes it visible when the write-up has gone stale.

The tests that read the log skip when it is absent, so a checkout without the data still runs green on the logic.

The site

This write-up is published with GitHub Pages by .github/workflows/deploy.yml, which lints, runs the tests, and then builds the site:

python build_site.py --out site
python -m http.server -d site 8000     # preview at http://localhost:8000

The build re-renders the figures and executes the notebook against the current data, so a published page cannot show a figure or table that disagrees with the log in the same commit. The site carries this write-up, the executed notebook with interactive charts, and results.jsonl itself, so anything on the page can be re-derived.

The notebook is exported by executing it and rendering the results, rather than with marimo export html-wasm. WASM runs the notebook in Pyodide in the reader's browser, which cannot import the local module or read the local JSONL log — and marimo export html only embeds results from a previously saved editor session, so from a clean CI checkout it would publish code with no outputs.

Being a marimo notebook, analysis.py is a plain Python file rather than JSON: it diffs readably in git, imports the helpers directly, and runs as a script. Its cells form a dependency graph rather than a linear sequence, so a cell cannot silently depend on another having been run first — a class of bug the earlier Jupyter version of this analysis did have.
